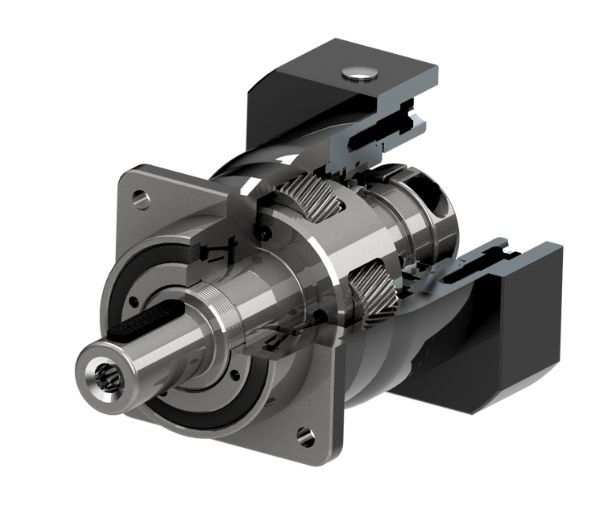

AF Tapered Roller Bearings Planetary Gearbox

AF Series High Precision Planetary Gearbox

Gearbox Type

Gearbox Model

​

​

​

​

​

​

​

​

​

Planetary Gearbox

AF-Planetary-Gearbox

​

​

​

​

​

​

​

​

​

The AF Series servo planetary gearbox sets a new standard in precision motion control. Its innovative design features an integrated output nut and premium tapered roller bearings, delivering zero backlash and exceptional load capacity in all directions. The precision-crafted helical gears, made from high-grade D2 alloy steel, ensure superior torque transmission and whisper-quiet operation through 3D-optimized gear engagement. This robust combination of tapered bearings and helical gears makes it particularly suited for demanding applications with frequent start-stops and varying loads, while maintaining outstanding durability and positioning accuracy.

Configurator

Motor Type

Horsepower (HP)

Mounting

RPM

Voltage

Motor Box Orientation

Frequency

Factory Encoder Mods

Your EDM Part #:

Model not Found

Description:

1HP, 1200, 190/380V, Foot Mount, 60Hz, F1, Cast Iron, SF1.15, CT 10:1, TEFC, Premium Efficiency Motor, NSK Bearings, IP55, B3, Ins. Class F, CSA Approved, Encoder Mount for Dynapar HS35R102484P7, Shaft Output To Be 5/8 Inch (0.620 Inch)

List Price:

C$9999.99

Your Price:

C$9999.99

Available:

Loading...

Build Your Model

Every EDM gearbox is custom built according to the customer's specifications. Please refer to the graphic and tables below for instructions on how to build your model number.

Please Note: You must supply the dimensions of your motor to ensure an accurate quote and subsequent gearbox.

Gearbox Characteristics
Output Shaft Loads
Output Torques
Input Speeds
AF Series High Precision Planetary Gearbox Basic Dimensions
Features

  • TEFC

  • NEMA Frames

  • Inverter Duty Rated: 10:1 CT (Constant Torque)

  • Service Factor: 1.15

  • NEMA B design

  • Protection Degree: IP55

  • Enclosure: TEFC Rigid Cast Iron Frame

  • VPI applied for best electrical performance

  • Corrosion resistant epoxy coated​

  • Foot mount or Foot mount with C Flange

  • 1HP to 250HP

  • ​F1 / F2 Convertible

  • Oversized NSK bearings on both ends (444T and up DE Roller Bearing)

  • 230/460V 50/60Hz, usable at 208V (444T and up 460V only)

  • 575V 50/60Hz

  • 4, 6 & 8 Pole (1200RPM, 1800RPM, 3600RPM)

  • ​Class “F” insulation with rise below Class “B”

  • Stainless Steel option

  • CSA-US certified, DOE approved

Performance DatA
Foot Mounting Dimensions
foot mounting diagram.png
foot mounting table.png
Face Mounting Dimensions
face mounting diagram.png
face mounting table.png

Please Note:

1. Tolerance on dimension      D: +0.000",  -1/32" for frames 143 ~ 326

                                  +0.000",  -1/16" for frames 364 ~ 449

2. Tolerance on Shaft Diameter U: +0.000", -0.005" for frames 143 ~ 215

                                  +0.000",  0.001" for frames 254 ~ 449​

3. Tolerance on dimension      R: +0.000", -0.015"

4. Dimension V is length of straight part of shaft

5. The conduit box can be rotated in 90° increments so that conduit can be received from any direction.

6. The conduit box can be located on either side of the motor

7. The last letter "Z" designates suitability for belt driven applications
