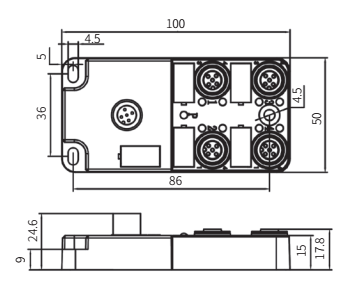

EDDK1204AO

4AO IP67 IO-LINK SLAVE REMOTE I/O FIELDBUS, ±10V DC,0-10V DC；0-20mA, 4-20mA, ±20mA, CLASS A

Connection Protocol

Unit Type

Input Capacity

Output Capacity

Rated Voltage

Rated Amperage

Network Port

Power Port

IO Ports

Port Voltage

Port Amperage

IO-Link

Analog Slave Module

0

4

18 - 30V DC

2.6A

M12 A-Code

N/A

M12 A-Code

0 - 10V DC

0.5A

Engineered for reliable performance in demanding industrial environments, the EDDK1204AO IP67 IO-Link Slave Remote I/O Fieldbus module delivers precise and flexible analog output control for modern automated machinery. Featuring four high-accuracy analog outputs supporting ±10 V DC, 0–10 V DC, 0–20 mA, 4–20 mA, and ±20 mA signal ranges, this Class A module seamlessly integrates with IO-Link networks to simplify configuration and diagnostics. Its rugged IP67-rated design ensures dependable operation inside control panels exposed to dust, moisture, and vibration, while the compact form factor enables easy installation and scalable system expansion. Ideal for machine builders and system integrators, this remote I/O solution enhances control accuracy, reduces wiring complexity, and improves overall system uptime.

Configurator

Motor Type

Horsepower (HP)

Mounting

RPM

Voltage

Motor Box Orientation

Frequency

Factory Encoder Mods

Your EDM Part #:

Model not Found

Description:

1HP, 1200, 190/380V, Foot Mount, 60Hz, F1, Cast Iron, SF1.15, CT 10:1, TEFC, Premium Efficiency Motor, NSK Bearings, IP55, B3, Ins. Class F, CSA Approved, Encoder Mount for Dynapar HS35R102484P7, Shaft Output To Be 5/8 Inch (0.620 Inch)

List Price:

C$99999.99

Your Price:

C$9999.99

Available:

Loading...

Build Your Model

Every EDM gearbox is custom built according to the customer's specifications. Please refer to the graphic and tables below for instructions on how to build your model number.

Please Note: You must supply the dimensions of your motor to ensure an accurate quote and subsequent gearbox.

Gearbox Characteristics
Output Shaft Loads
Output Torques
Input Speeds
AB Series High Precision Planetary Gearbox Basic Dimensions
Features

  • TEFC

  • NEMA Frames

  • Inverter Duty Rated: 10:1 CT (Constant Torque)

  • Service Factor: 1.15

  • NEMA B design

  • Protection Degree: IP55

  • Enclosure: TEFC Rigid Cast Iron Frame

  • VPI applied for best electrical performance

  • Corrosion resistant epoxy coated​

  • Foot mount or Foot mount with C Flange

  • 1HP to 250HP

  • ​F1 / F2 Convertible

  • Oversized NSK bearings on both ends (444T and up DE Roller Bearing)

  • 230/460V 50/60Hz, usable at 208V (444T and up 460V only)

  • 575V 50/60Hz

  • 4, 6 & 8 Pole (1200RPM, 1800RPM, 3600RPM)

  • ​Class “F” insulation with rise below Class “B”

  • Stainless Steel option

  • CSA-US certified, DOE approved

Performance DatA
Foot Mounting Dimensions
foot mounting diagram.png
foot mounting table.png
Face Mounting Dimensions
face mounting diagram.png
face mounting table.png

Please Note:

1. Tolerance on dimension      D: +0.000",  -1/32" for frames 143 ~ 326

                                  +0.000",  -1/16" for frames 364 ~ 449

2. Tolerance on Shaft Diameter U: +0.000", -0.005" for frames 143 ~ 215

                                  +0.000",  0.001" for frames 254 ~ 449​

3. Tolerance on dimension      R: +0.000", -0.015"

4. Dimension V is length of straight part of shaft

5. The conduit box can be rotated in 90° increments so that conduit can be received from any direction.

6. The conduit box can be located on either side of the motor

7. The last letter "Z" designates suitability for belt driven applications
